Solid SF-765 Digital Cable TV dB Meter (Shopping - TV, Cable, DirectTV)

Item ID 2987384 in Category: Shopping - TV, Cable, DirectTV

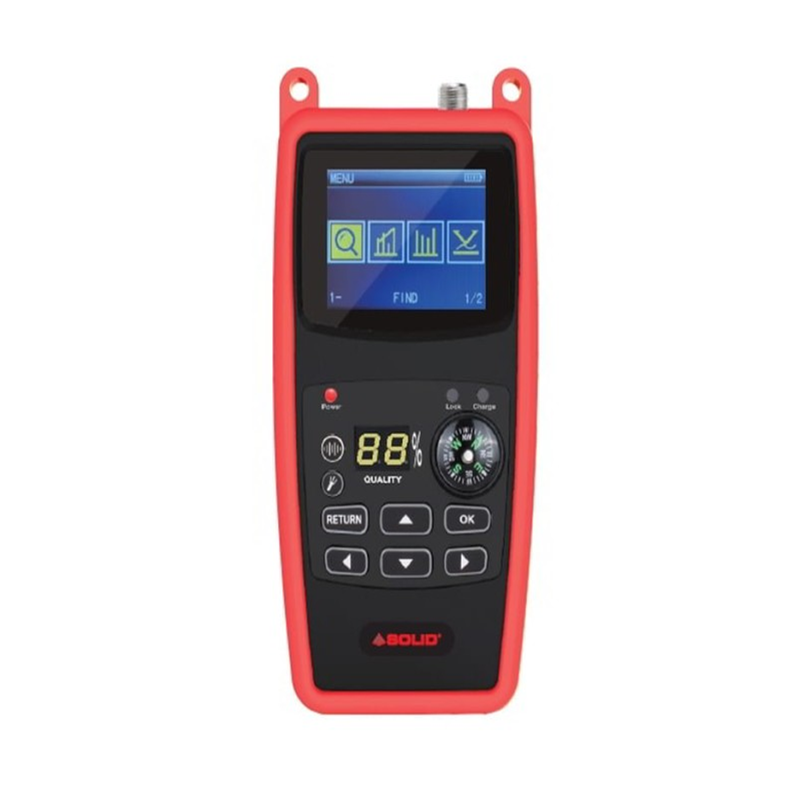

Solid SF-765 Digital Cable TV dB Meter


Solid SF-765 Digital Cable dB Meter
Cable TV Gain Measuring Instrument with MER+BER+Spectrum Analyzer

Features :

User-Friendly Interface
With AC/DC Power passes tester
Power, MER, BER & Channel lock-in display
7.4V/2600 mAh Long Life Battery
Channel plan backup & Upgrade through USB
8 Channel Tilt
Spectrum View Available
Self Calibration (Adjustment) of all, Single Channel Power, MER & Factory Reset Options.
Technical Specs :
Input Frequency: 45-1002MHz
Input Level: 78-20dBm
Power: DC12V 1000mA
Technical Specifications -

DVB-C

Frequency Range

45-1002MHz

Power Level

30-110d1311V

Modulation Type

16/32/64/128/2560AM

Demodulation T

DVB-C:EN 300 429

Bandwidth

6MHz,8MHz

SR

1.4-7.5Msps

Interface

RF Input

75 D. Type-F(f)

DC Adaptor

12V 1A

USB

USB port

Battery

Capacity

7.4V/2600mAh

Working Time

8 hours

Charging Time

5 hours

Other Specification

Dimension

175X85X40mm

Wei. ht

381.
